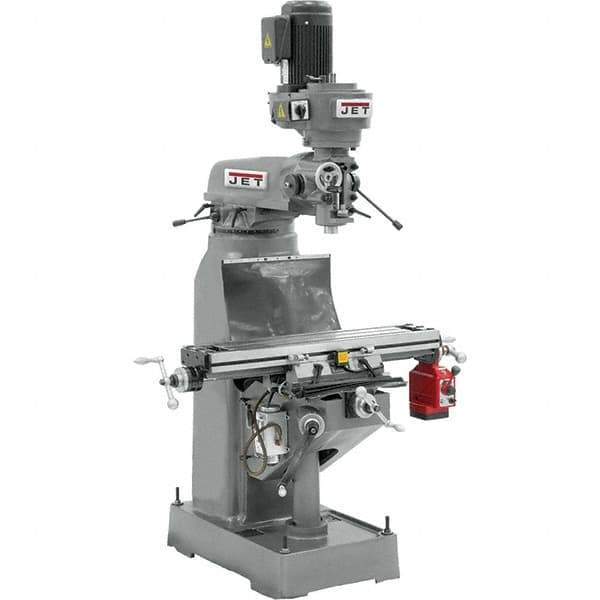

Jet - 9" Table Width x 42" Table Length, Step Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 2 hp
Item #: 72898976
Brand: Jet
Model #: 690082
Exact Tooling IR#: 04
Features and Benefits
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. They commonly feature 8 or 16 fixed speeds.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Step Pulley |
| Table Length (Inch) | 42 |
| Table Width (Inch) | 9 |
| Phase | 3 |
| Longitudinal Travel (Decimal Inch) | 23.8750 |
| Cross Travel (Decimal Inch) | 12.5000 |
| Knee Travel (Decimal Inch) | 14.5000 |
| Number of Spindle Speeds | 16 |
| Maximum Spindle Speed (RPM) | 5440.00 |
| Minimum Spindle Speed (RPM) | 80.00 |
| Spindle Travel Length (Inch) | 5 |
| Spindle Taper Size | R8 |
| Quill Diameter (Inch) | 3-3/8 |
| Spindle Power Feed Rate Per Minute (in/rev) | 0.0015; 0.0030; 0.0060 |
| Maximum Spindle to Table Distance (Inch) | 17-1/2 |
| Minimum Spindle to Column Distance (Inch) | 4-1/2 |
| Minimum Spindle to Column Distance (Decimal Inch) | 4.5000 |
| Maximum Spindle To Column Distance (Inch) | 19 |
| Maximum Spindle To Column Distance (Decimal Inch) | 19.0000 |
| Table Load Capacity (Lb.) | 550.00 |
| Number of T-Slots | 3 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Ram Travel Length (Inch) | 13-3/8 |
| Horsepower (HP) | 2.00 |
| Voltage | 220; 230 |
| Overall Length (Inch) | 57 |
| Overall Height (Inch) | 82 |
| Overall Depth (Inch) | 64 |
