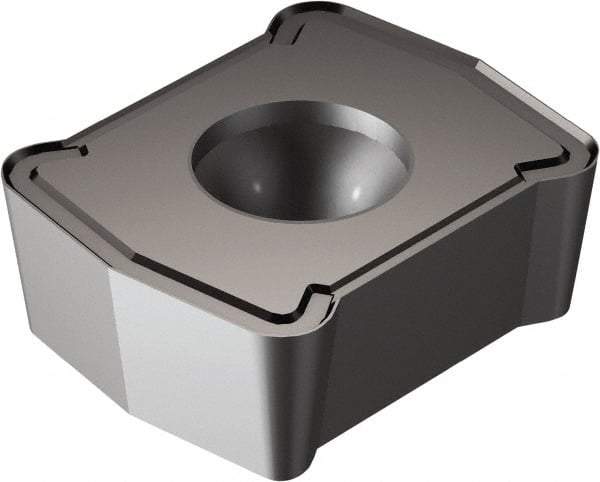

Sandvik Coromant - LCMX3 53 Grade 3040 Carbide Indexable Drill Insert - TiCN/Al2O3 Finish, Rectangle, 7/32" Inscribed Circle
Item #: 72833155
Brand: Sandvik Coromant
Model #: 5735052
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LCMX |
| Insert Size | 3 |
| Material | Carbide |
| Manufacturer's Grade | 3040 |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Thickness (mm) | 3.18 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Rectangle |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Relief Angle | 7 |
| Included Angle | 7 |
| Coating | TiCN/Al2O3 |
| Coating Process | MTCVD |
| Cutting Direction | Right Hand |
| Chipbreaker | 53 |
