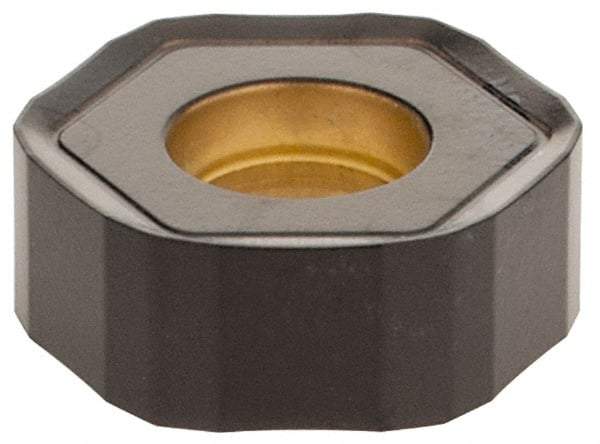

Kennametal - HNPJ43 Grade KCPK30 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 0.1731" Thick, 12mm Inscribed Circle, 1mm Corner Radius
Item #: 72581515
Brand: Kennametal
Model #: 4119228
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNPJ |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | KCPK30 |
| Coating | TiN/TiCN/Al2O3 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Decimal Inch) | 0.1731 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Hole Diameter (mm) | 5.00 |
| Hole Diameter (Decimal Inch) | 0.1970 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Cutting Edge Style | Honed T-Land |
| ISO Number | HNPJ0604ANSNHD |
