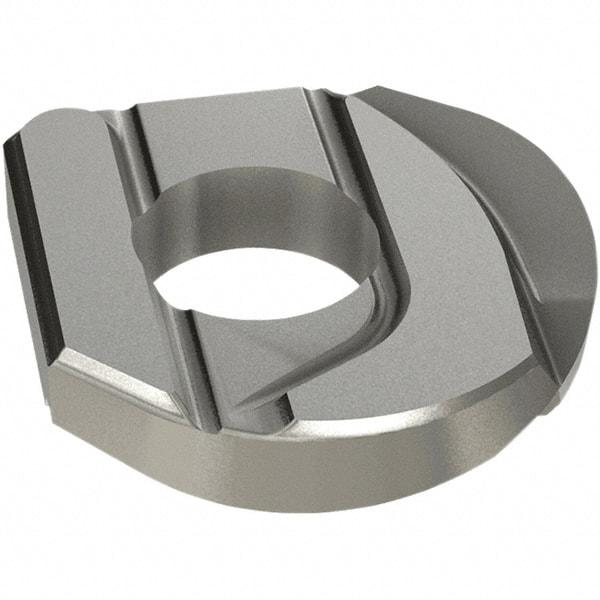

Iscar - HCCD.50-R.015 QF Grade IC908 Carbide Milling Insert - TiAlN Finish, 0.102" Thick, 0.015" Corner Radius
Item #: 72510068
Brand: Iscar
Model #: 5604286
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HCC |
| Insert Size | D.50-R.015 |
| Material | Carbide |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1020 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Coating Process | PVD |
| Shape | Pentagon |
| Insert Hand | Right Hand |
| Chipbreaker | QF |
| Maximum Depth of Cut (Decimal Inch) | 0.3190 |
| ISO Number | HCC D.50-R.015-QF |
