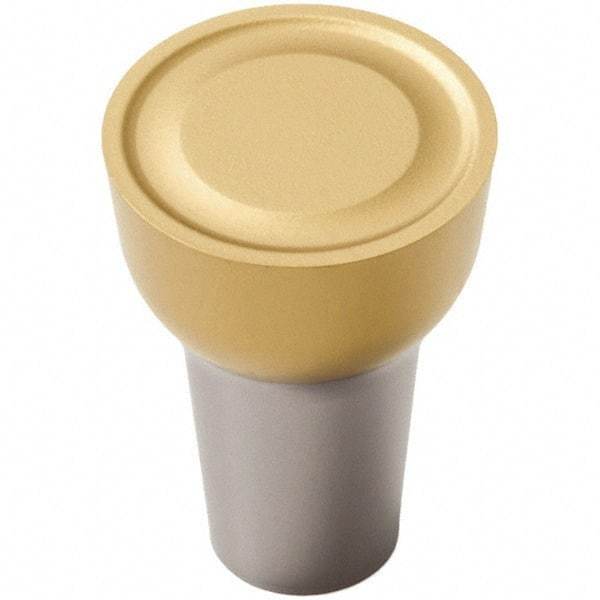

Seco - RCGS4, TS2000 Grade Carbide Profiling Insert - TiAlN/TiN Finish, 7° Relief Angle, Round, 21/32" Thick, 1/2" Inscribed Circle
Item #: 72493802
Brand: Seco
Model #: 39101
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | RCGS |
| Insert Size | 4 |
| Material Grade | C6 |
| Manufacturer's Grade | TS2000 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.6563 |
| Thickness (Inch) | 21/32 |
| Relief Angle | 7 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Secondary Workpiece Material | M |
| Primary Workpiece Material | S |
| Chipbreaker | 46 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Shape | Round |
