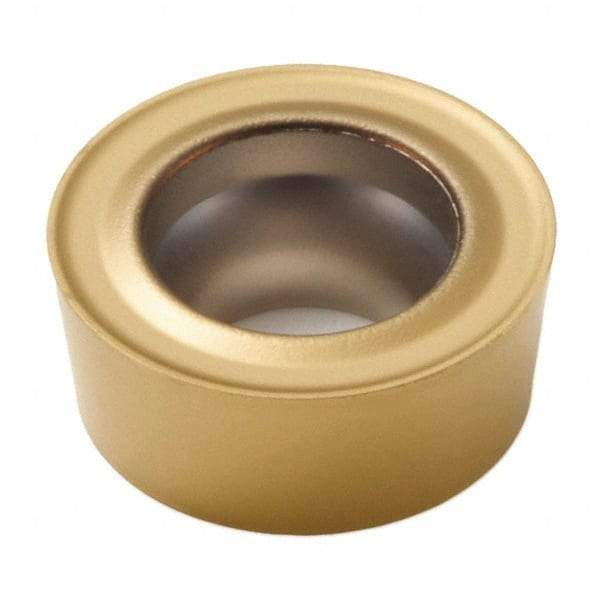

Seco - RCMT10T3M0 F2 Grade TS2000 Carbide Turning Insert - TiAlN/TiN Finish, Round, 10mm Inscr Circle, 5/32" Thick
Item #: 72493661
Brand: Seco
Model #: 39020
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 10T3M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3930 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Manufacturer's Grade | TS2000 |
| Coating | TiAlN/TiN |
| Material Grade | C6 |
| Chip Breaker | F2 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | M |
| Insert Holding Method | Screw |
| Shape | Round |
