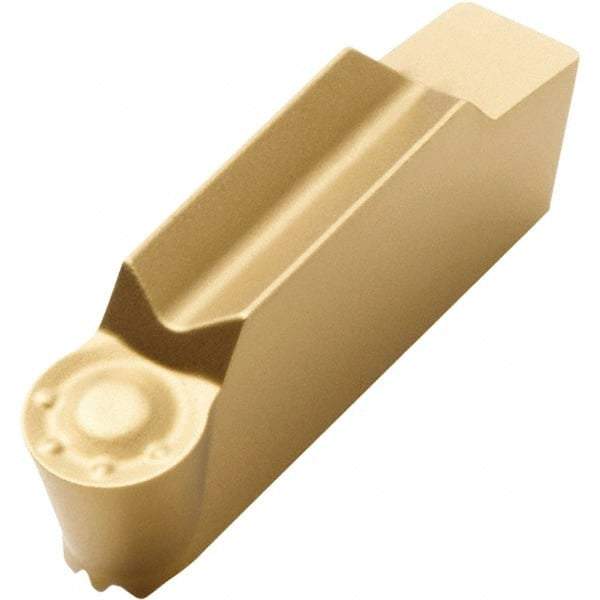

Seco - LCMR, 0.236" Cutting Width, MP, CP200 Grade, Single End Multi-Directional Turning Insert - TiAlN, TiN Coated, Full Radius
Item #: 72490857
Brand: Seco
Model #: 33243
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LCMR |
| Insert Hand | Neutral |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP200 |
| Cutting Width (Decimal Inch) | 0.2360 |
| Cutting Height (Decimal Inch) | 0.1770 |
| Corner Radius (Decimal Inch) | 0.1180 |
| Single or Double End | Single |
| Chipbreaker | MP |
| Full Radius | Yes |
| Insert Length (Decimal Inch) | 0.7140 |
| Series | MDT |
| Relief Angle | 7 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
