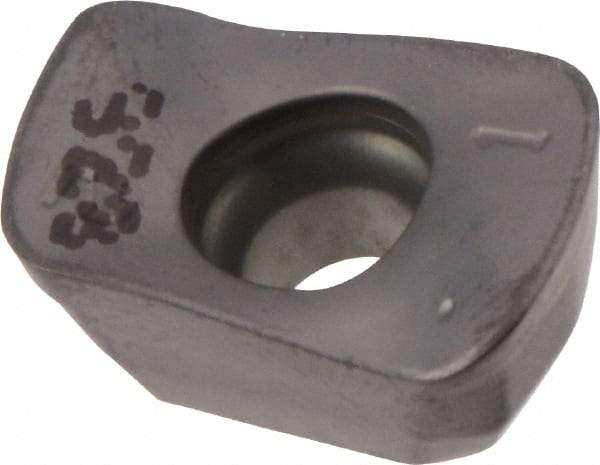

Iscar - ADKT1505 FF Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.244" Thick, 0.106" Corner Radius
Item #: 72487085
Brand: Iscar
Model #: 5605785
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADKT |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.3900 |
| Length (Decimal Inch) | 0.6260 |
| Thickness (Decimal Inch) | 0.2440 |
| Corner Radius (Decimal Inch) | 0.1060 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | FF |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| ISO Number | ADKT 1505R8T-FF |
