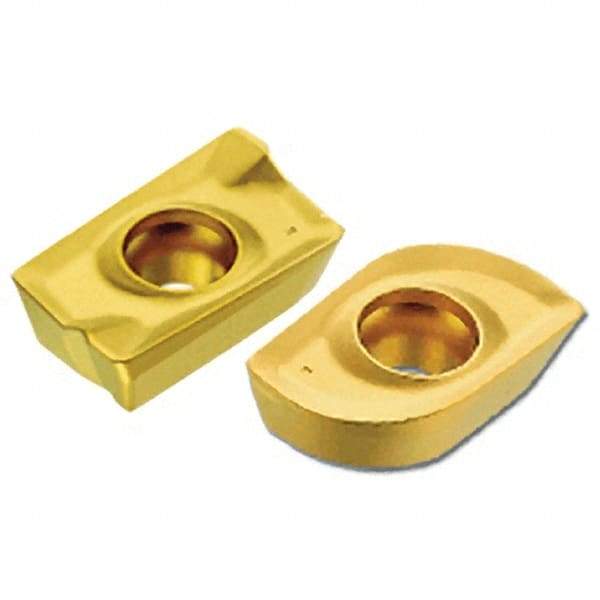

Iscar - APKT160432 HM Grade IC328 Carbide Milling Insert - TiCN Finish, 5.3mm Thick, 1/8" Corner Radius
Item #: 72482615
Brand: Iscar
Model #: 5601944
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APKT |
| Insert Size | 160432 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (mm) | 9.45 |
| Length (mm) | 16.60 |
| Thickness (mm) | 5.30 |
| Corner Radius (Inch) | 1/8 |
| Corner Radius (mm) | 3.20 |
| Relief Angle | 11.000 |
| Rake Angle | 25 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | HM |
| Maximum Depth of Cut (mm) | 15.15 |
| Manufacturers Catalog Number | APKT 160432R-HM |
| ISO Number | APKT 160432R-HM |
| ANSI Number | APKT 160432R-HM |
