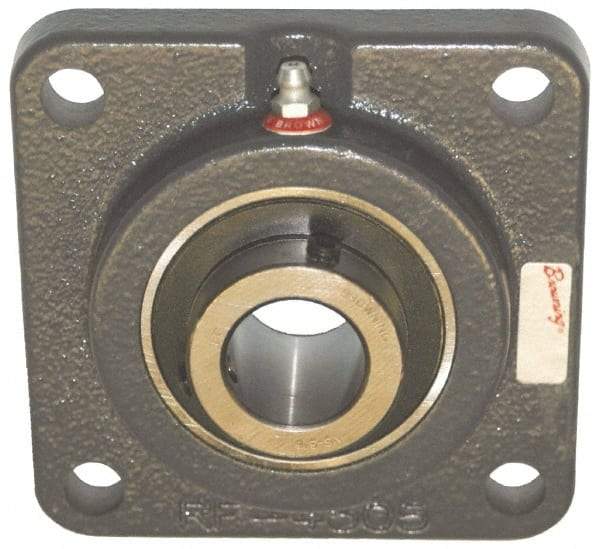

Browning - 1-1/4" ID, 4-1/4" OAL x 4-1/4" OAH 4-Bolt Flange - 2,567 Lb Static Cap, 4,381 Lb Dyn Cap, 3-1/4" Btw Mnt Hole Ctrs, Cast Iron
Item #: 72472053
Brand: Browning
Model #: VF4S-120S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4-Bolt Flange |
| Inside Diameter (Inch) | 1-1/4 |
| Width (Inch) | 1-15/32 |
| Overall Length (Inch) | 4-1/4 |
| Overall Height (Inch) | 4-1/4 |
| Static Load Capacity (Pounds) | 2567.00 |
| Dynamic Load Capacity (Pounds) | 4381 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 3.2500 |
| Distance Between Mounting Hole Centers (Inch) | 3-1/4 |
| Material | Cast Iron |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 7/16 |
