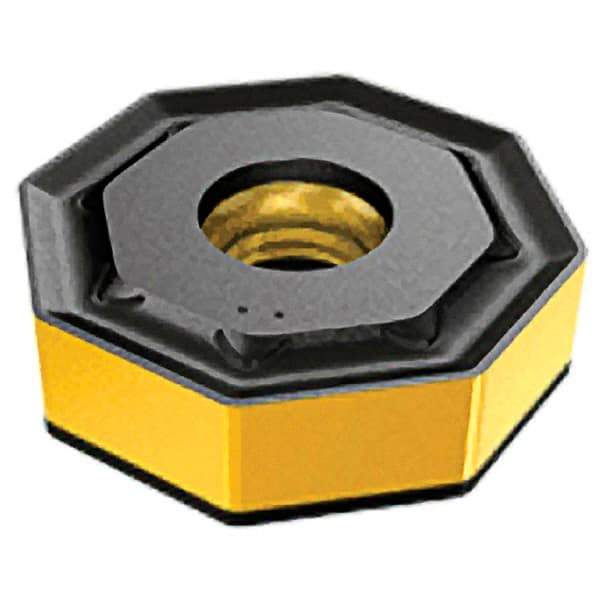

Iscar - ONMU080612 HL Grade IC908 Carbide Milling Insert - TiAlN Finish, 0.2362" Thick, 0.7953" Inscribed Circle, 1.2mm Corner Radius
Item #: 72185218
Brand: Iscar
Model #: 5605378
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONMU |
| Insert Size | 080612 |
| Material | Carbide |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.7953 |
| Thickness (Decimal Inch) | 0.2362 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Relief Angle | 0.000 |
| Rake Angle | 26 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Chipbreaker | HL |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| ISO Number | ONMU 080612-HL |
