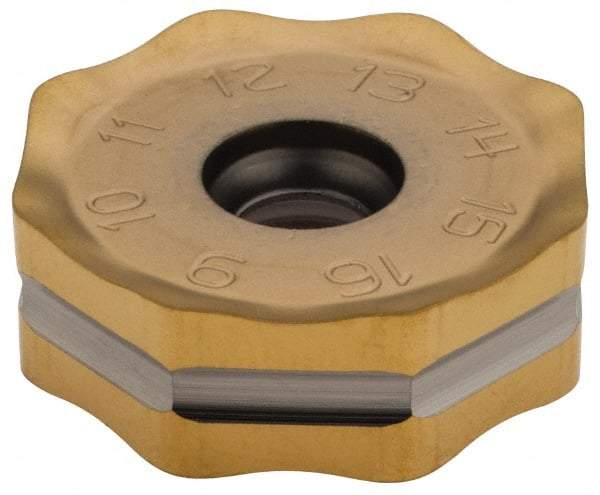

Seco - ONMU090520 ME12 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.228" Thick, 0.866" Inscribed Circle
Item #: 72161615
Brand: Seco
Model #: 65480
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONMU |
| Insert Size | 090520 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.8660 |
| Thickness (Decimal Inch) | 0.2280 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Coating Process | PVD |
| Shape | Octagon |
| Insert Hand | Right Hand |
| Chipbreaker | ME12 |
| ISO Number | ONMU090520ANTN-ME12 |
