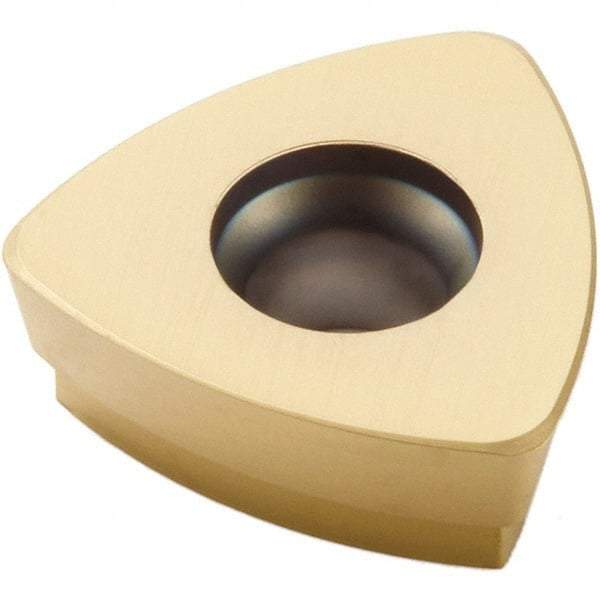

Seco - 218.19125 MD08 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 0.156" Thick, 0.35" Inscribed Circle, 0.031" Corner Radius
Item #: 72095359
Brand: Seco
Model #: 44572
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 218.19 |
| Insert Size | 125 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.3500 |
| Inscribed Circle (Decimal Inch) | 0.3500 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 12.000 |
| Rake Angle | 0 |
| Coating Process | PVD |
| Shape | Trigon |
| Insert Hand | Neutral |
| Chipbreaker | MD08 |
| ISO Number | 218.19-125T-T3-MD08 |
