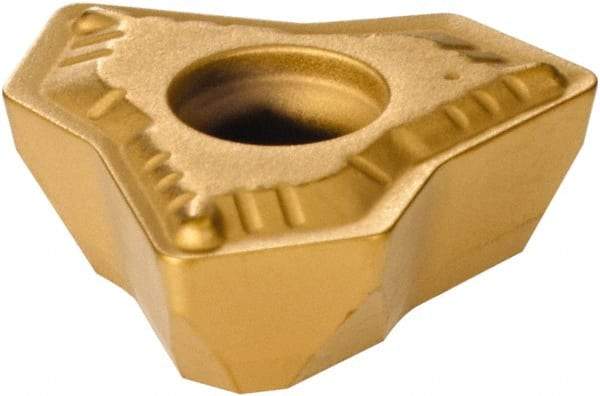

Sumitomo - XPMX13 None Grade AC350 Carbide Indexable Drill Insert - Proprietary, 13mm Inscribed Circle
Item #: 71972582
Brand: Sumitomo
Model #: 1ACB010
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XPMX |
| Insert Size | 13 |
| Material | Carbide |
| Manufacturer's Grade | AC350 |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Proprietary |
| Width (Decimal Inch) | 0.5118 |
| Width (mm) | 13.00 |
| Chipbreaker | None |
