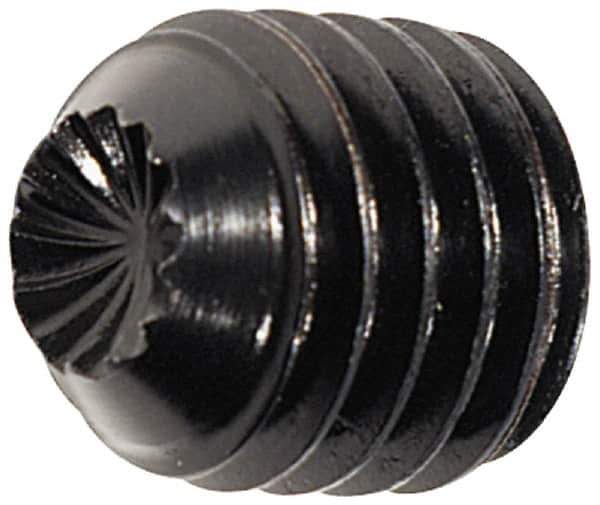

Camcar - 3/8-16 UNC, 3/8" OAL, Knurled Cup Point Set Screw - Grade ASTM F912 Steel, 3/16" Key
Item #: 71889489
Brand: Camcar
Model #: 40872
Exact Tooling IR#: 04
Features and Benefits
Knurled cup points have an externally knurled cup that locks the set screw in place and resists loosening and deformation under high vibration. Knurled cup points are used both in poorly tapped holes and to locate gears and pulleys on shafts.
Hex socket drive types have a hex-shaped recess in the head and are driven with hex keys or hex socket bits. The driving surface is protected from external damage and provides six sides of contact surface for added torque.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Point Type | Knurled Cup |
| Thread Size (Inch) | 3/8-16 |
| Length (Inch) | 3/8 |
| Drive Type | Hex Socket |
| Material Grade | ASTM F912 |
| Material | Steel |
| Finish/Coating | Black Oxide |
| Thread Standard | UNC |
| Length Measurement Type | Overall Length |
| Fastener Standard | ANSI B18.8.2; ANSI B2.2; ANSI B18.3; ASTM A574; MS16555 |
| Hex Key Size (Inch) | 3/16 |
