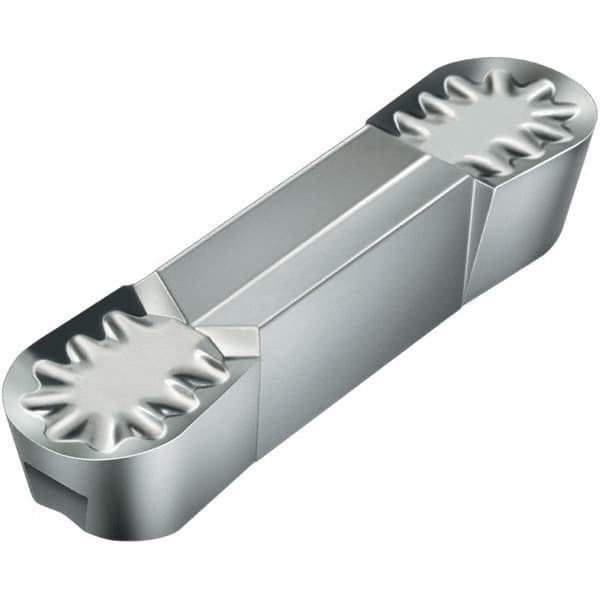

Walter - 4R300NGX RK Grade WK1, 6mm Cutting Width Carbide Grooving Insert - 4mm Max Depth of Cut, Neutral, 3mm Corner Radius, Uncoated
Item #: 71731467
Brand: Walter
Model #: 5106905
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GX |
| Insert Size | 4R300N |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Material Grade | N10/S10 |
| Manufacturer's Grade | WK1 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Chipbreaker | RK |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Grooving; Turning |
| Corner Radius (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 25.40 |
| Overall Length (Decimal Inch) | 1.0000 |
| Series | Tiger-tec |
| ISO Number | GX24-4R300N-RK8 |
| Manufacturers Catalog Number | GX24-4R300N-RK8 |
