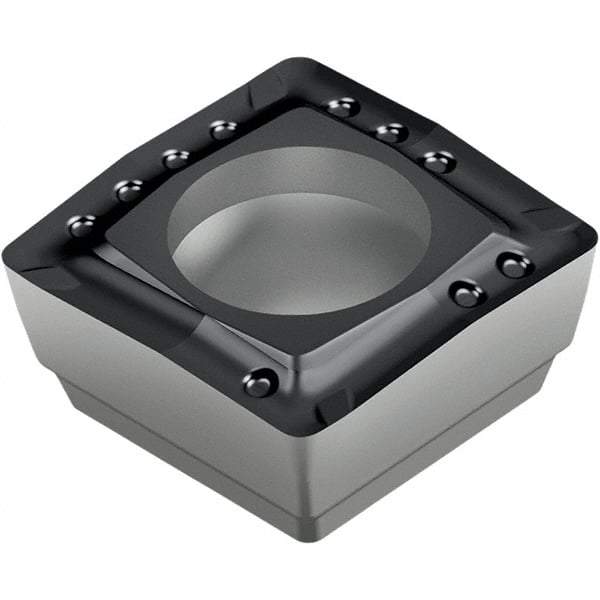

Walter - P4845 A57 Grade WSP45 Carbide Indexable Drill Insert - TiAlN/Al2O3/ZrN Finish, Square, 3/8" Inscribed Circle
Item #: 71730246
Brand: Walter
Model #: 5556162
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P484 |
| Insert Size | 5 |
| Material | Carbide |
| Material Grade | P45/M35/S45 |
| Manufacturer's Grade | WSP45 |
| Inscribed Circle (mm) | 9.55 |
| Inscribed Circle (Decimal Inch) | 0.3760 |
| Thickness (mm) | 4.11 |
| Thickness (Decimal Inch) | 0.1620 |
| Corner Radius (mm) | 0.58 |
| Corner Radius (Decimal Inch) | 0.0230 |
| Shape | Square |
| Coating | TiAlN/Al2O3/ZrN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | A57 |
