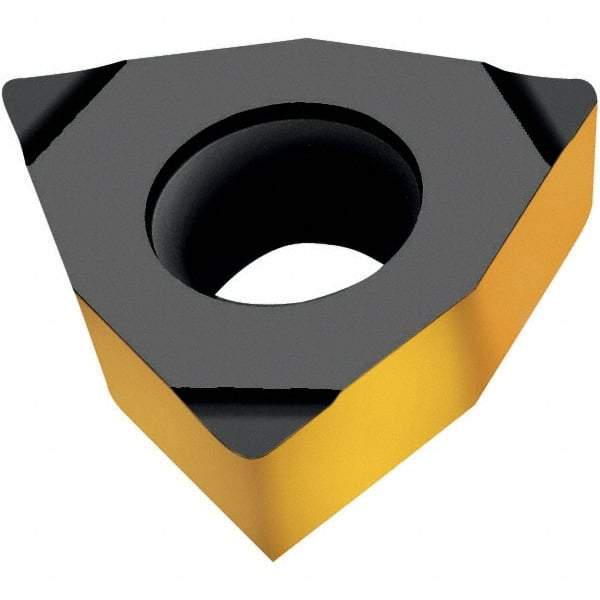

Walter - WCGT521 X15 Grade WAK15 Carbide Boring Insert - TiCN/Al2O3/TiN Finish, Trigon, 5/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 71728729
Brand: Walter
Model #: 5015724
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | WCGT |
| Insert Size | 521 |
| Material Grade | K15 |
| Manufacturer's Grade | WAK15 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Coating | TiCN/Al2O3/TiN |
| Chipbreaker | X15 |
| Length (Decimal Inch) | 0.1060 |
| Rake | Positive |
| Cutting Direction | Neutral |
| Coating Process | CVD |
| Series | Tiger-tec |
| Insert Holding Method | Screw |
| Shape | Trigon |
