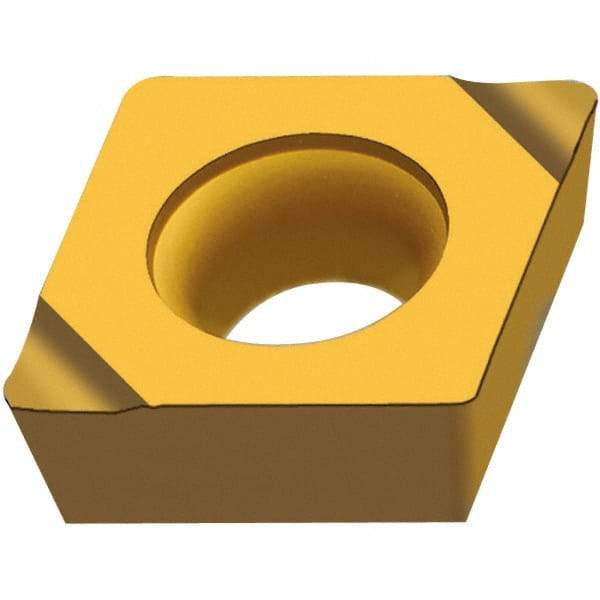

Walter - CCGT21.50.5 X15 Grade WTP35 Carbide Boring Insert - TiCN/TiN Finish, Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.008" Corner Radius
Item #: 71727879
Brand: Walter
Model #: 5004266
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | CCGT |
| Insert Size | 21.50.5 |
| Material Grade | P35/M35/S35 |
| Manufacturer's Grade | WTP35 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating | TiCN/TiN |
| Chipbreaker | X15 |
| Length (Decimal Inch) | 0.2540 |
| Rake | Positive |
| Cutting Direction | Neutral |
| Coating Process | CVD |
| Series | Tiger-tec |
| Insert Holding Method | Screw |
| Shape | Diamond |
