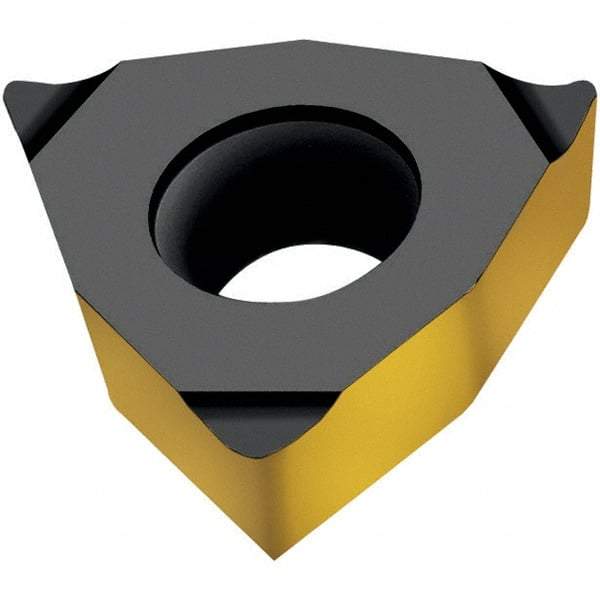

Walter - WCGT731 X25 Grade WK1 Carbide Boring Insert - Uncoated, Trigon, 7/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 71727739
Brand: Walter
Model #: 5004193
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | WCGT |
| Insert Size | 731 |
| Material Grade | N10 |
| Manufacturer's Grade | WK1 |
| Inscribed Circle (mm) | 22.23 |
| Inscribed Circle (Inch) | 7/8 |
| Inscribed Circle (Decimal Inch) | 0.8750 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Coating | Uncoated |
| Chipbreaker | X25 |
| Length (Decimal Inch) | 0.1500 |
| Rake | Positive |
| Cutting Direction | Neutral |
| Series | Tiger-tec |
| Insert Holding Method | Screw |
| Shape | Trigon |
