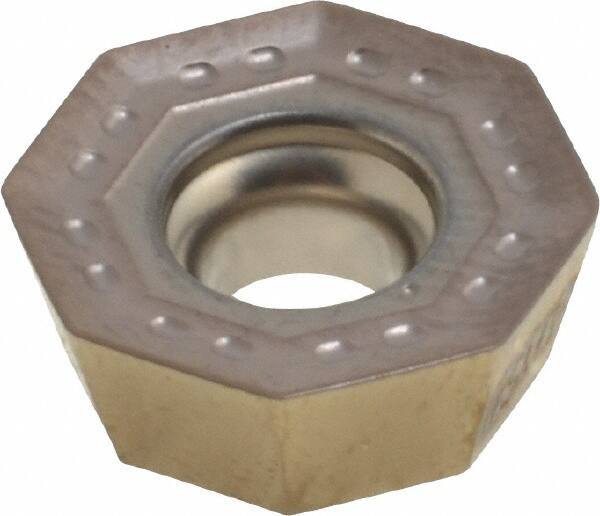

Walter - ODHT0504 Grade WSM35 Carbide Milling Insert - TiCN/Al2O3 Finish, 0.187" Thick, 0.031" Corner Radius
Item #: 71720189
Brand: Walter
Model #: 5277137
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ODHT |
| Insert Size | 0504 |
| Material | Carbide |
| Manufacturer's Grade | WSM35 |
| Coating | TiCN/Al2O3 |
| Width (Inch) | 1/2 |
| Width (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating Process | PVD |
| ISO Number | ODHT0504ZZN-F57 |
