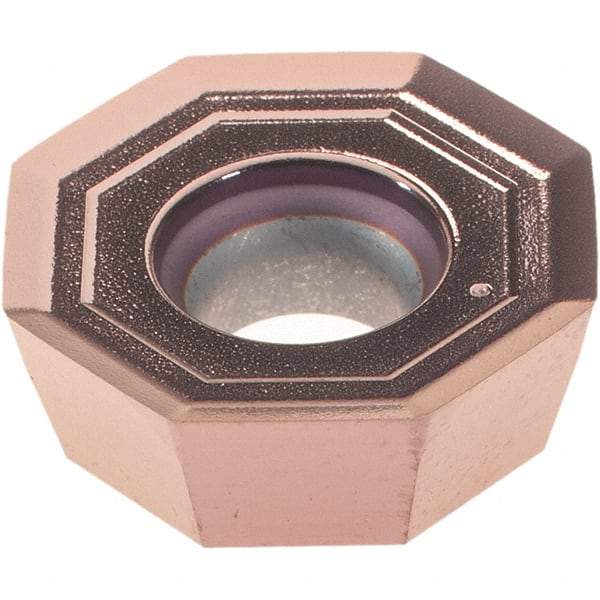

Walter - ODHT0605 G88 Grade WXN15 Carbide Milling Insert - TiCN Plus Finish, 0.2189" Thick, 5/8" Inscribed Circle, 0.8mm Corner Radius
Item #: 71712921
Brand: Walter
Model #: 5021889
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ODHT |
| Insert Size | 0605 |
| Material | Carbide |
| Material Grade | N15 |
| Manufacturer's Grade | WXN15 |
| Coating | TiCN Plus |
| Length (Decimal Inch) | 0.2362 |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | G88 |
| Manufacturers Catalog Number | ODHT0605ZZN-G88 |
