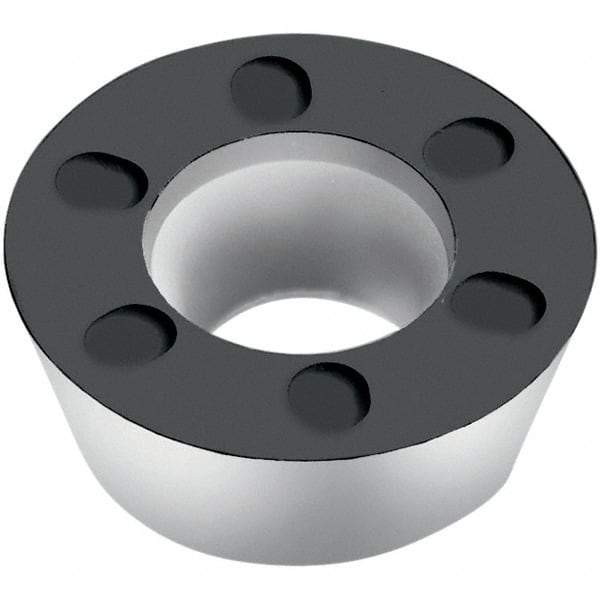

Walter - RDHW1605M0 A57 Grade WAK15 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 0.2189" Thick, 16mm Inscribed Circle
Item #: 71712855
Brand: Walter
Model #: 5021685
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RDHW |
| Insert Size | 1605M0 |
| Material | Carbide |
| Material Grade | K15 |
| Manufacturer's Grade | WAK15 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Thickness (Decimal Inch) | 0.2189 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Round |
| Chipbreaker | A57 |
| Manufacturers Catalog Number | RDHW1605M0-A57 |
