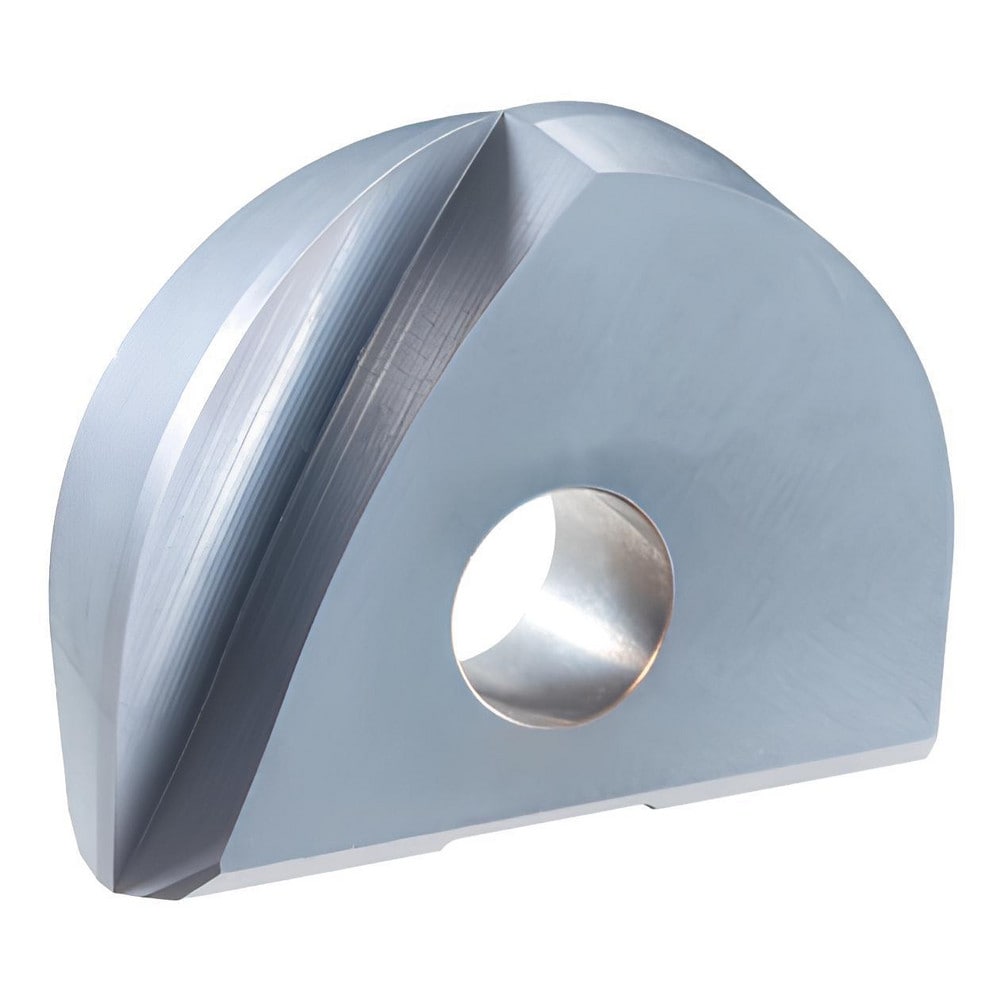

Milling Insert: PFB1250A-SH XP3310, Solid Carbide
Item #: 55807655
Brand: OSG
Model #: 52101036
Product Specifications
| Insert Style | PFB |
| Insert Size | 1250 |
| Insert Material | Solid Carbide |
| Insert Shape | Ball Nose |
| Manufacturer Grade | XP3310 |
| Corner Radius (Decimal Inch) | 0.6250 |
| Number Of Cutting Edges | 1 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2756 |
| Thickness (mm) | 7.00 |
| Coating/Finish | SiC |
| Insert Size Code | 1250 |
| Width (Inch) | 1-1/4 |
| Inscribed Circle (Inch) | 1-1/4 |
| Inscribed Circle (Decimal Inch) | 1.2500 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Length Range (Decimal Inch) | 0.9000 to 1.0000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Series | 78PFB |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron |
| Primary Workpiece Material Code | H; K |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | PFB1250A-SH |
| Iso Code | PFB1250A-SH |
| Standards | ISO; ANSI |
| Convex Radius (Decimal Inch) | 0.6250 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 52101036 |
| Cutter Series Compatibility | 78PFB |
| Chip Breaker | SH |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 180 |
| Length (mm) | 23.50 |
| Width (Decimal Inch - 4 Decimals) | 1.2500 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.9252 |
| Insert Style | PFB |
| Insert Size | 1250 |
| Insert Material | Solid Carbide |
| Insert Shape | Ball Nose |
| Manufacturer Grade | XP3310 |
| Corner Radius (Decimal Inch) | 0.6250 |
| Number Of Cutting Edges | 1 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2756 |
| Thickness (mm) | 7.00 |
| Coating/Finish | SiC |
| Insert Size Code | 1250 |
| Width (Inch) | 1-1/4 |
| Inscribed Circle (Inch) | 1-1/4 |
| Inscribed Circle (Decimal Inch) | 1.2500 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Length Range (Decimal Inch) | 0.9000 to 1.0000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Series | 78PFB |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron |
| Primary Workpiece Material Code | H; K |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | PFB1250A-SH |
| Iso Code | PFB1250A-SH |
| Standards | ISO; ANSI |
| Convex Radius (Decimal Inch) | 0.6250 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 52101036 |
| Cutter Series Compatibility | 78PFB |
| Chip Breaker | SH |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 180 |
| Length (mm) | 23.50 |
| Width (Decimal Inch - 4 Decimals) | 1.2500 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.9252 |
| MSC Part # | 55807655 |
| Mfr Part # | 52101036 |
| Country of Origin Country of Origin is subject to change | Japan |
