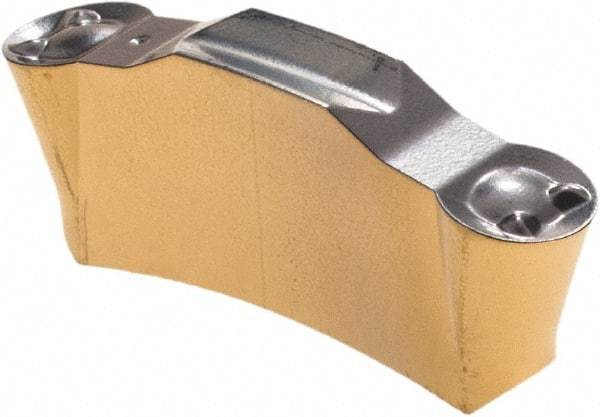

Iscar - 420TGMF Grade IC808, 4mm Cutting Width Carbide Grooving Insert - 2mm Max Depth of Cut, Neutral, 2mm Corner Radius, TiAlN Finish
Item #: 71373120
Brand: Iscar
Model #: 6450115
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TGMF |
| Insert Size | 420 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Coating Process | PVD |
| Overall Length (mm) | 17.80 |
| Overall Length (Decimal Inch) | 0.7008 |
| Series | Top Grip |
