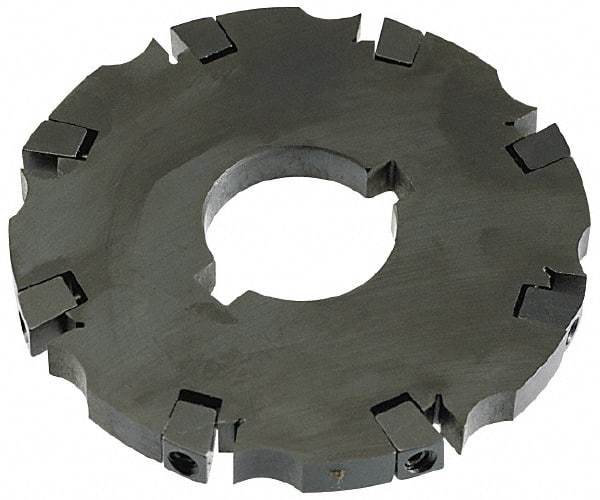

APT - Arbor Hole Connection, 0.765" Cutting Width, 1-7/8" Depth of Cut, 8" Cutter Diam, 1-1/2" Hole Diam, 16 Tooth Indexable Slotting Cutter - SM81 Toolholder, CTA 4 Insert
Item #: 71337562
Brand: APT
Model #: SM816154
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.7650 |
| Maximum Depth of Cut (Decimal Inch) | 1.8750 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Cutter Diameter (Inch) | 8 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 16 |
| Toolholder Style | SM81 |
| Series | Slot Master |
| Insert Style | CTA 4 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Wedge |
| Minimum Cutting Width (Decimal Inch) | 0.4850 |
| Maximum Cutting Width (Decimal Inch) | 0.7650 |
| Radius | No |
| Rake | Positive |
| Cutter Body Width (Decimal Inch) | 0.4500 |
| Complete Insert Compatibility1 | CTA-4 |
