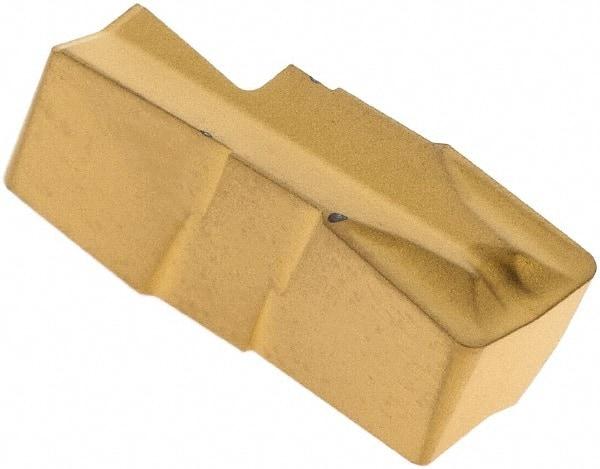

Iscar - 500E06030GIF E Grade IC9054, 5mm Cutting Width Carbide Grooving Insert - 4.8mm Max Depth of Cut, Neutral, 0.6mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 71212674
Brand: Iscar
Model #: 6403035
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIF |
| Insert Size | 500E06030 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1970 |
| Maximum Depth of Cut (mm) | 4.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1890 |
| Manufacturer's Grade | IC9054 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | E |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 0.60 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Coating Process | CVD |
| Overall Length (mm) | 14.99 |
| Overall Length (Decimal Inch) | 0.5900 |
| Series | Cut Grip |
