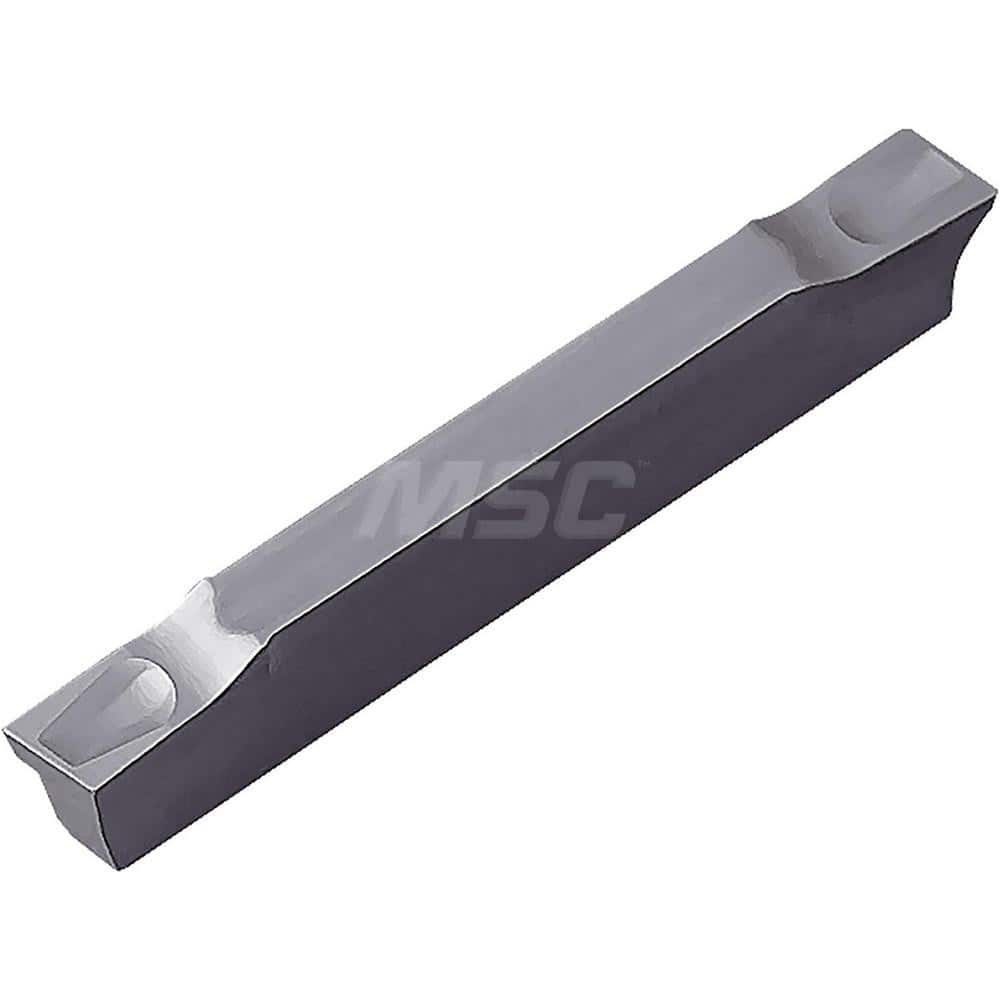

Grooving Insert: GMM3020MT PR915, Solid Carbide TiAlN Finish, Neutral, 3 mm Cutting Width, 20 mm Max Depth, Series KGM
Item #: 70867122
Brand: Kyocera
Model #: TJG12731
Product Specifications
| Insert Style | GMM |
| Insert Size | 3020 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR915 |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 20.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.05 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | External Deep Grooving; Cut-Off; External Grooving |
| Series | KGM |
| Coating Process | PVD |
| Iso Code | GMM3020-MT |
| Manufacturers Catalog Number | GMM3020MTPR915 |
| Minimum Groove Width (mm) | -0.05 |
| Maximum Groove Width (mm) | 0.05 |
| Chip Breaker | MT |
| Full Radius | No |
| Overall Width | 3.00 |
| Coating/Finish | TiAlN |
| Number Of Cutting Edges | 2 |
