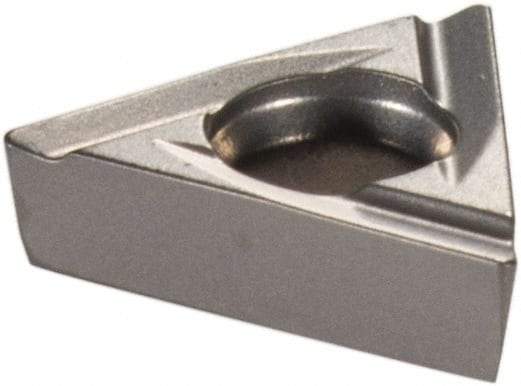

Komet - TOHX06T102 G12 Grade CK32 Cermet Boring Insert - Uncoated, 60° Triangle, 8° Relief Angle, 4mm Inscr Circle, 1.8mm Thick, 0.2mm Corner Radius
Item #: 70519046
Brand: Komet
Model #: W30041200232
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal. It can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Material | Cermet |
| Insert Style | TOHX |
| Insert Size | 06T102 |
| Manufacturer's Grade | CK32 |
| Inscribed Circle (mm) | 4.00 |
| Inscribed Circle (Decimal Inch) | 0.1575 |
| Thickness (mm) | 1.80 |
| Thickness (Decimal Inch) | 0.0709 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating | Uncoated |
| Chipbreaker | G12 |
| Length (mm) | 1.00 |
| Length (Decimal Inch) | 0.0394 |
| Rake | Positive |
| Rake Angle | 12 |
| Relief Angle | 8 |
| Included Angle | 60 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Shape | Triangle |
