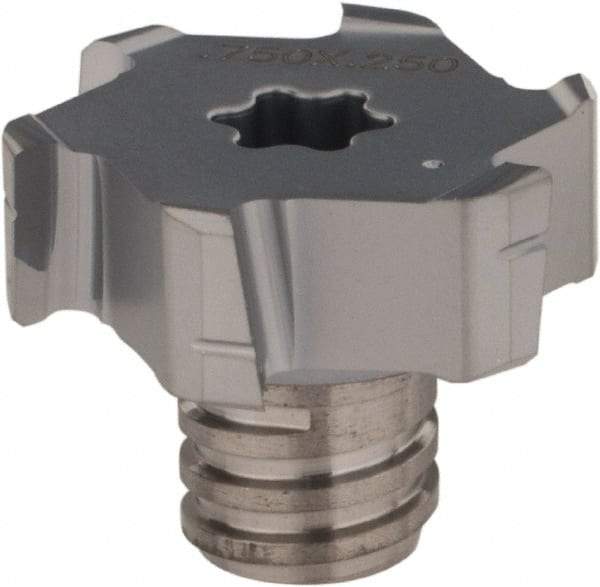

Iscar - MM TS-H Grade IC328 Carbide T-Slot Milling Tip Insert - TiCN Finish, 6 Flutes, 3/4" Cutting Diam, 0.12" Depth of Cut, 0.016" Cnr Rad
Item #: 70393632
Brand: Iscar
Model #: 5603187
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM TS-H |
| Milling Tip Type | T-Slot |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Depth of Cut (Decimal Inch) | 0.1200 |
| Number of Flutes | 6 |
| Coating | TiCN |
| Milling Tip Full Description | T-Slot |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating Process | PVD |
| Cutting Width (Decimal Inch) | 0.2500 |
| Thread Size | T08 |
| Manufacturers Catalog Number | MM TS.750-H250D-06T08 |
