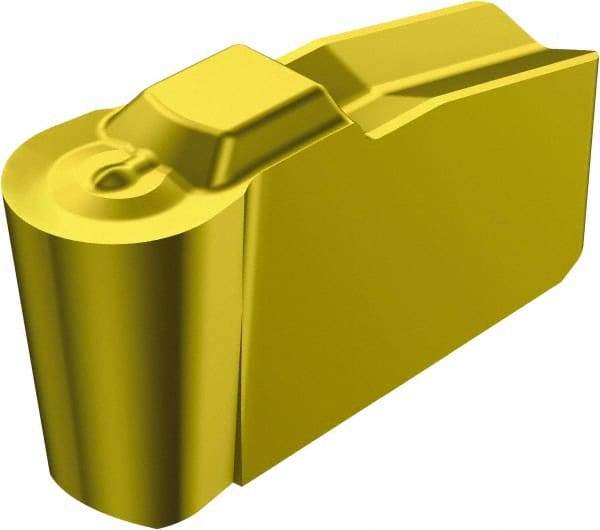

Sandvik Coromant - 80N151.2-A.. 4P 3/8" Cutting Width Carbide Grooving Insert - 4.19mm Max Depth of Cut, Neutral, 3/16" Corner Radius, TiCN/TiN Finish
Item #: 70187794
Brand: Sandvik Coromant
Model #: 5737287
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2-A.. |
| Insert Size | 80 |
| Material | Carbide |
| Cutting Width (mm) | 9.53 |
| Cutting Width (Inch) | 3/8 |
| Cutting Width (Decimal Inch) | 0.3750 |
| Maximum Depth of Cut (mm) | 4.19 |
| Maximum Depth of Cut (Decimal Inch) | 0.1650 |
| Coating | TiCN/TiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 10.32 |
| Cutting Height (Decimal Inch) | 0.4062 |
| Insert Seat Size | 80 |
| Chipbreaker | 4P |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.1875 |
| Corner Radius (mm) | 4.760 |
| Corner Radius (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.1875 |
| Coating Process | CVD |
| Series | T-Max Q-Cut |
| Rake | Positive |
| ISO Number | N151.2-A375-80-4P 235 |
| Manufacturers Catalog Number | N151.2-A375-80-4P 235 |
| Overall Width (Decimal Inch) | 0.3750 |
| Insert Thickness (Decimal Inch) | 0.4062 |
