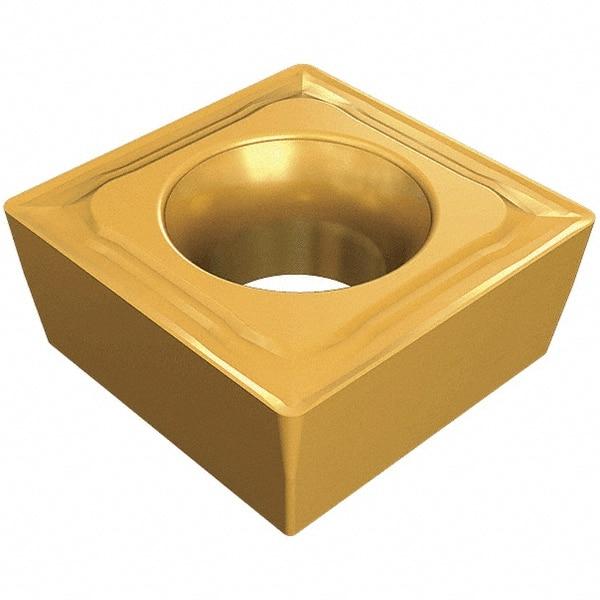

Iscar - SCMT3-1 14 Grade IC907 Carbide Turning Insert - TiAlN Finish, 90° Square, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 70157904
Brand: Iscar
Model #: 5594041
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 3-1 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | IC907 |
| Coating | TiAlN |
| Material Grade | Submicron |
| Chip Breaker | 14 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 90 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Insert Holding Method | Screw |
| Shape | Square |
