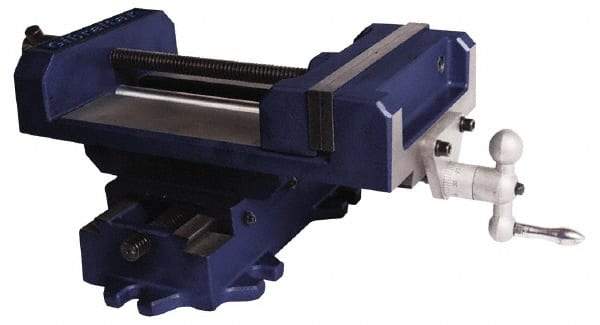

Gibraltar - 8" Jaw Opening Capacity x 2" Throat Depth, Horizontal Drill Press Vise - 8" Wide Jaw, Cross Slide Base, Standard Speed, 8" OAL x 7-1/4" Overall Height, Cast Iron
Item #: 70038047
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Cross slide drill press vises allow for precise workpiece positioning by X and Y-axis travel (left/right and forward/back) motion.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 8 |
| Jaw Opening Capacity (Inch) | 8 |
| Jaw Opening Capacity (Decimal Inch) | 8.0000 |
| Throat Depth (Inch) | 2 |
| Throat Depth (Decimal Inch) | 2.0000 |
| Orientation Type | Horizontal |
| Base Motion Type | Cross Slide |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 8 |
| Overall Height (Inch) | 7-1/4 |
| Vise Material | Cast Iron |
