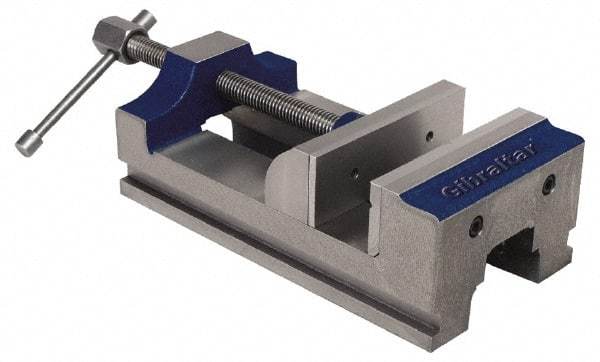

Gibraltar - 6" Jaw Opening Capacity x 2" Throat Depth, Horizontal Drill Press Vise - 6" Wide Jaw, Stationary Base, Standard Speed, 14" OAL, Cast Iron
Item #: 70038005
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 6 |
| Jaw Opening Capacity (Inch) | 6 |
| Jaw Opening Capacity (Decimal Inch) | 6.0000 |
| Throat Depth (Inch) | 2 |
| Throat Depth (Decimal Inch) | 2.0000 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 14 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Height (Inch) | 3.9000 |
| Overall Height (Decimal Inch) | 3.2430 |
| Vise Material | Cast Iron |
