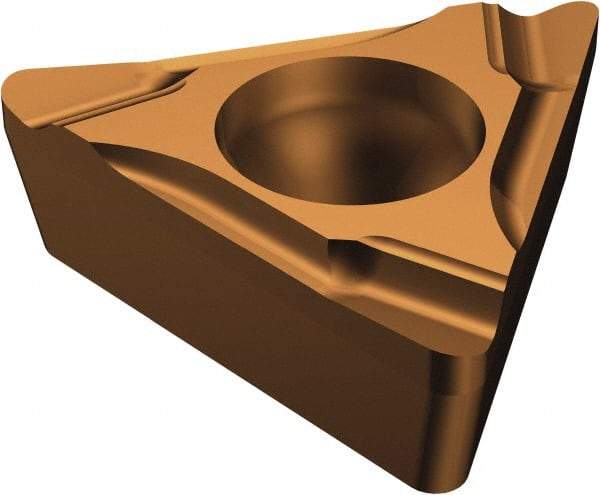

Sandvik Coromant - TCGT1.21.21 K Grade 1115 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 60° Triangle, 5/32" Inscr Circle, 5/64" Thick, 1/64" Corner Radius
Item #: 69774172
Brand: Sandvik Coromant
Model #: 5751733
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGT |
| Insert Size | 1.21.21 |
| Material | Carbide |
| Length (mm) | 6.62 |
| Length (Decimal Inch) | 0.2606 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 5/64 |
| Thickness (Decimal Inch) | 0.0780 |
| Thickness (mm) | 1.98 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 1115 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | K |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| ISO Number | TCGT06T104LK1115 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5751733 |
| Primary Workpiece Material | M; S |
| Included Angle | 60 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 6.22 |
| Maximum Depth of Cut (Decimal Inch) | 0.2449 |
| Insert Holding Method | Screw |
| Shape | Triangle |
