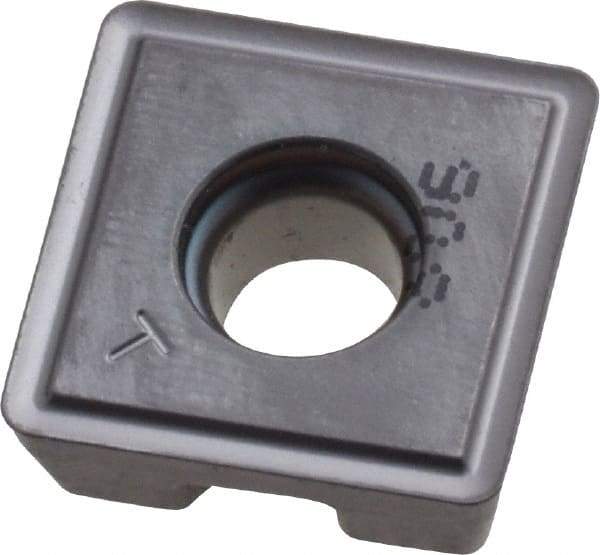

Iscar - SOMT160512 DT Grade IC908 Carbide Indexable Drill Insert - TiAlN Finish, Square, 16mm Inscribed Circle
Item #: 69740892
Brand: Iscar
Model #: 5505439
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | SOMT |
| Insert Size | 160512 |
| Material | Carbide |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Shape | Square |
| Hole Diameter (Decimal Inch) | 0.2200 |
| Included Angle | 90 |
| Coating | TiAlN |
| Coating Process | PVD |
| Chipbreaker | DT |
