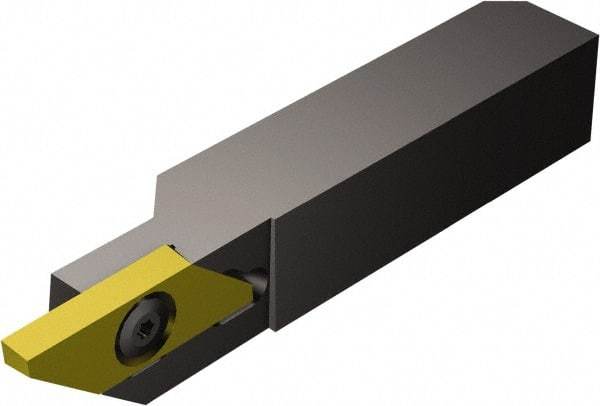

Sandvik Coromant - External Thread, 0.3346" Max Depth of Cut, 70mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 3 Seat Size, 1/2" Shank Height x 1/2" Shank Width, MAxR 3.. Insert Style, QS-SMALR/L..X Toolholder Style, Series CoroCut XS
Item #: 69694594
Brand: Sandvik Coromant
Model #: 5739169
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Internal or External | External |
Hand of Holder | Right Hand |
Maximum Depth of Cut (mm) | 8.50 |
Maximum Depth of Cut (Decimal Inch) | 0.3346 |
Overall Length (Decimal Inch) | 2.7559 |
Overall Length (mm) | 70.00 |
Series | CoroCut XS |
Toolholder Style | QS-SMALR/L..X |
Insert Compatibility | MAxR 3.. |
Shank Height (mm) | 12.70 |
Shank Height (Inch) | 1/2 |
Shank Height (Decimal Inch) | 0.5000 |
Shank Width/Diameter (mm) | 12.70 |
Shank Width/Diameter (Inch) | 1/2 |
Shank Width/Diameter (Decimal Inch) | 0.5000 |
Through Coolant | NonThrough Coolant |
Insert Holding Method | Clamp |
Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
Head Height (mm) | 12.70 |
Head Height (Decimal Inch) | 0.5000 |
Head Length (mm) | 12.70 |
Head Length (Decimal Inch) | 0.5000 |
Shank Length (Decimal Inch) | 1.6929 |
Shank Length (mm) | 43.00 |
Manufacturers Catalog Number | QS-SMALR 083X |
Insert Seat Size | 3.0 |
