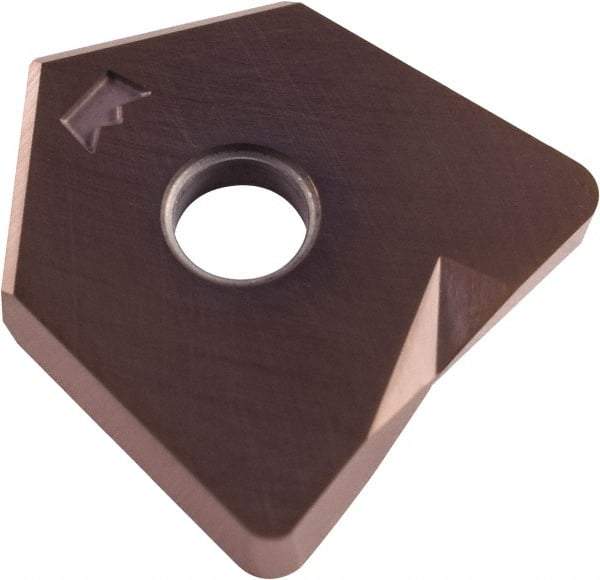

Millstar - BD-N20 None Grade CM043 Carbide Milling Insert - HSN Finish, 4mm Thick, 20mm Inscribed Circle, 1.6mm Corner Radius
Item #: 69638989
Brand: Millstar
Model #: BD20N16HSN
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BD-N |
| Insert Size | 20 |
| Material | Carbide |
| Material Grade | C1/C2/C3/C4/C5/C6 |
| Manufacturer's Grade | CM043 |
| Coating | HSN |
| Width (mm) | 20.00 |
| Length (mm) | 13.35 |
| Inscribed Circle (mm) | 20.00 |
| Thickness (mm) | 4.00 |
| Corner Radius (mm) | 1.60 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | PVD |
| Shape | Ball Nose Rounded Tip |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Cutting Edge Style | Honed |
| Cutter Series Compatibility | CBCYF; CYF |
