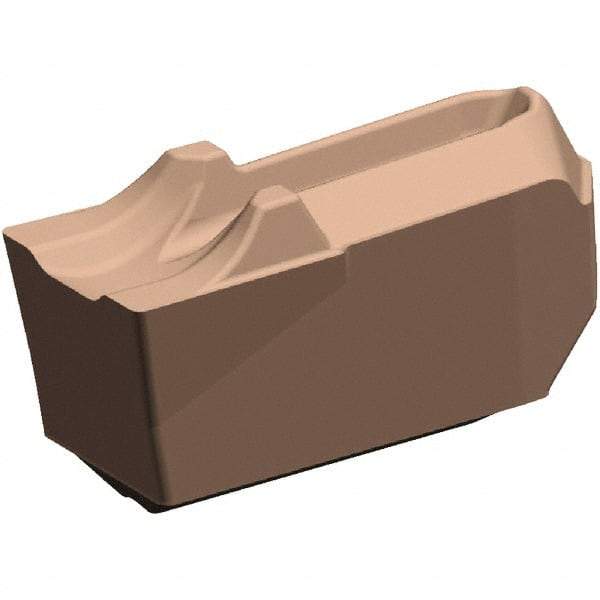

Kennametal - EC-U8 CR KCU25 Grade, 0.315" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.016" Cnr Rad, AlTiN Coated, Single End
Item #: 69587095
Brand: Kennametal
Model #: 5533097
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | EC-U |
| Insert Size | 8 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Series | Beyond Evolution |
| Relief Angle | 2 |
| Chipbreaker | CR |
| Full Radius | No |
| Coating Process | PVD |
| Overall Length (mm) | 17.50 |
| Overall Length (Decimal Inch) | 0.6870 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Insert Hand | Neutral |
| Insert Seat Size | 8 |
| Overall Width (mm) | 8.00 |
| Overall Width (Decimal Inch) | 0.3150 |
