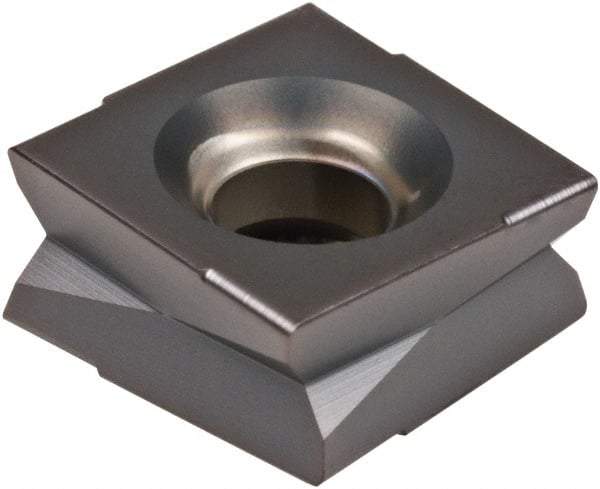

Kennametal - C8FIX1808 RN Grade KCU25 Carbide Turning Insert - AlTiN Finish, 0.417" Inscr Circle, 0.311 Thick, 3/64" Corner Radius
Item #: 69261246
Brand: Kennametal
Model #: 4051048
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | C8FIX |
| Insert Size | 1808 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.4170 |
| Thickness (Decimal Inch) | 0.3110 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Chip Breaker | RN |
| Hole Diameter (Decimal Inch) | 0.2800 |
| ISO Number | C8FIX180812RRN |
| Manufacturers Catalog Number | C8FIX180812RRN |
| Insert Holding Method | Pin |
