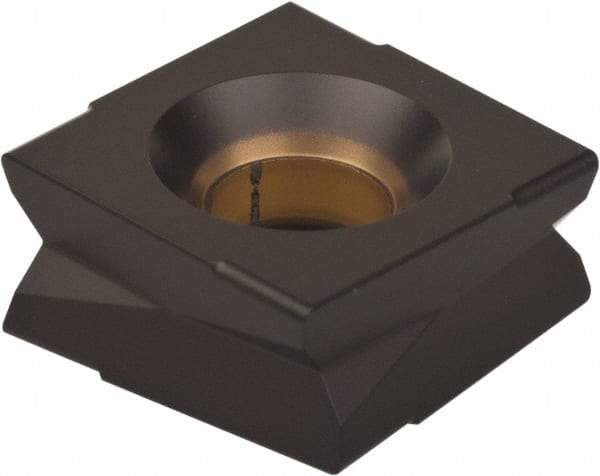

Kennametal - C8FIX432 RN Grade KCP40 Carbide Turning Insert - TiN Finish, 0.35" Inscr Circle, 0.2598 Thick, 1/32" Corner Radius
Item #: 69260974
Brand: Kennametal
Model #: 4054375
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | C8FIX |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3500 |
| Thickness (Decimal Inch) | 0.2598 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KCP40 |
| Coating | TiN |
| Chip Breaker | RN |
| Hole Diameter (Decimal Inch) | 0.2400 |
| ISO Number | C8FIX150608RRN |
| Manufacturers Catalog Number | C8FIX150608RRN |
| Insert Holding Method | Pin |
