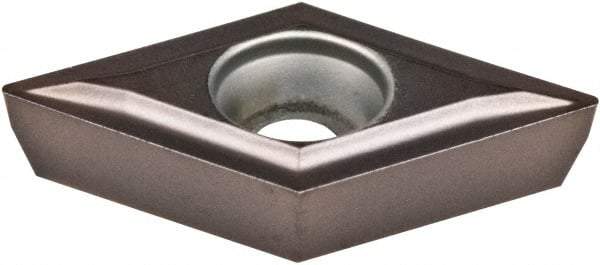

Kennametal - DPGT21.50.5 LF Grade KCU10 Carbide Turning Insert - AlTiN Finish, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.008" Corner Radius
Item #: 69259760
Brand: Kennametal
Model #: 4045272
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DPGT |
| Insert Size | 21.50.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | LF |
| Hole Diameter (Decimal Inch) | 0.2000 |
| ISO Number | DPGT070202LF |
| Relief Angle | 11 |
| Manufacturers Catalog Number | DPGT21505LF |
| Included Angle | 55 |
| Insert Holding Method | Screw |
| Shape | Diamond |
