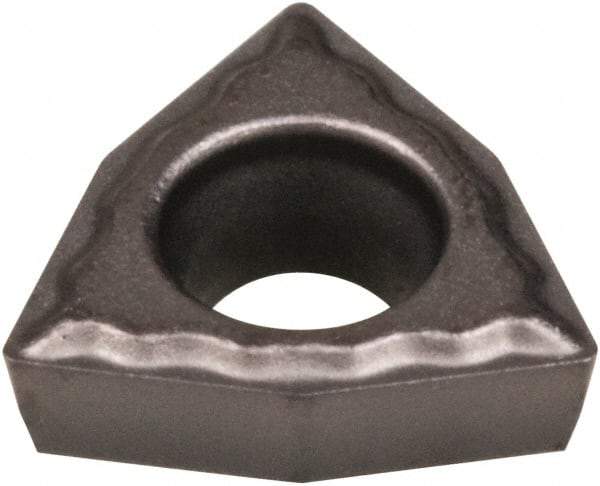

Kennametal - WPGT215 SR Grade KCU10 Carbide Turning Insert - AlTiN Finish, 80° Trigon, 1/4" Inscr Circle, 3/32" Thick, 0.008" Corner Radius
Item #: 69259448
Brand: Kennametal
Model #: 4045347
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPGT |
| Insert Size | 215 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | SR |
| Hole Diameter (Decimal Inch) | 0.2000 |
| ISO Number | WPGT040202UF |
| Relief Angle | 11 |
| Manufacturers Catalog Number | WPGT21505UF |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Trigon |
