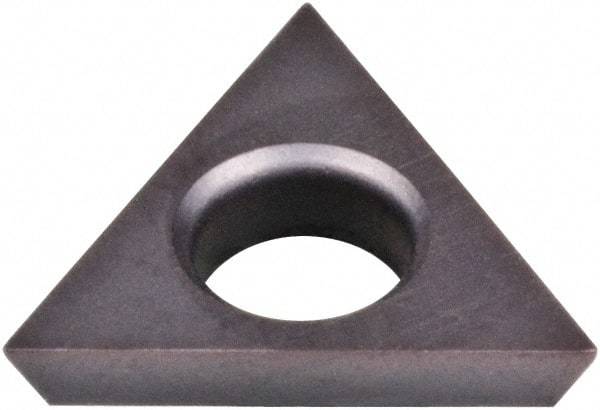

Kennametal - TDHB128 SR Grade KCU10 Carbide Turning Insert - AlTiN Finish, 60° Triangle, 0.1575" Inscr Circle, 3/64" Thick, 0.007" Corner Radius
Item #: 69259406
Brand: Kennametal
Model #: 4053336
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TDHB |
| Insert Size | 128 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.1575 |
| Thickness (Inch) | 3/64 |
| Thickness (Decimal Inch) | 0.0469 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | SR |
| Hole Diameter (Decimal Inch) | 0.1770 |
| ISO Number | TDHB07T1202 |
| Relief Angle | 15 |
| Manufacturers Catalog Number | TDHB12807505 |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
