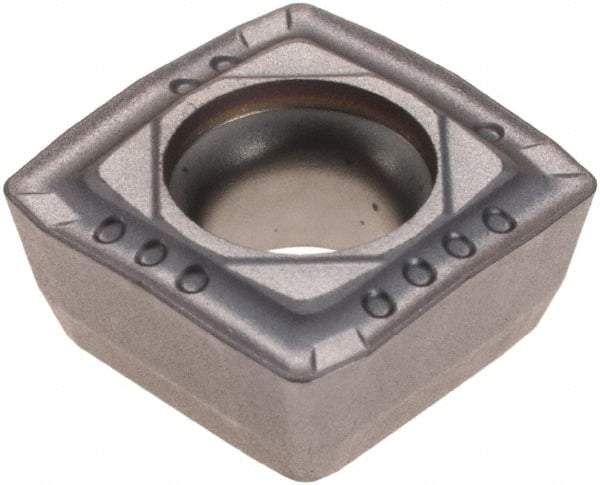

Walter - P4845 E57 Grade WXP40 Carbide Indexable Drill Insert - TiCN Finish, Square, 10.29mm Inscribed Circle
Item #: 69250082
Brand: Walter
Model #: 6154590
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | P484 |
| Insert Size | 5 |
| Material | Carbide |
| Material Grade | P40/M30/S30 |
| Manufacturer's Grade | WXP40 |
| Inscribed Circle (mm) | 10.29 |
| Inscribed Circle (Decimal Inch) | 0.4050 |
| Thickness (mm) | 4.11 |
| Thickness (Decimal Inch) | 0.1620 |
| Corner Radius (mm) | 0.58 |
| Corner Radius (Decimal Inch) | 0.0230 |
| Shape | Square |
| Coating | TiCN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | E57 |
