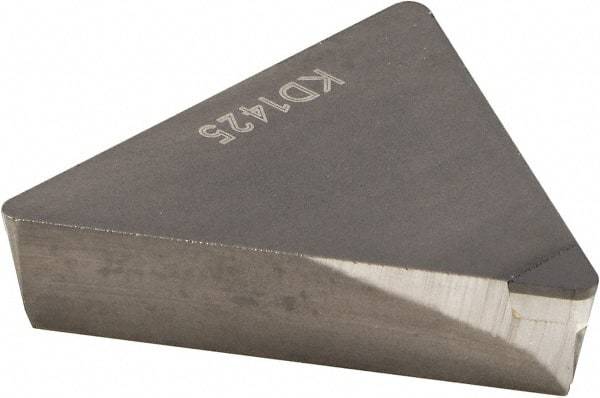

Kennametal - TPG432 Grade KD1425 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 60° Triangle, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 68856418
Brand: Kennametal
Model #: 3648588
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | TPG |
| Insert Size | 432 |
| Material | Polycrystalline Diamond (PCD) |
| Length (mm) | 22.00 |
| Length (Decimal Inch) | 0.8660 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KD1425 |
| Coating | Uncoated |
| ISO Number | TPGN220408F |
| Relief Angle | 11 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Kendex |
| Insert Holding Method | Clamp |
| Shape | Triangle |
