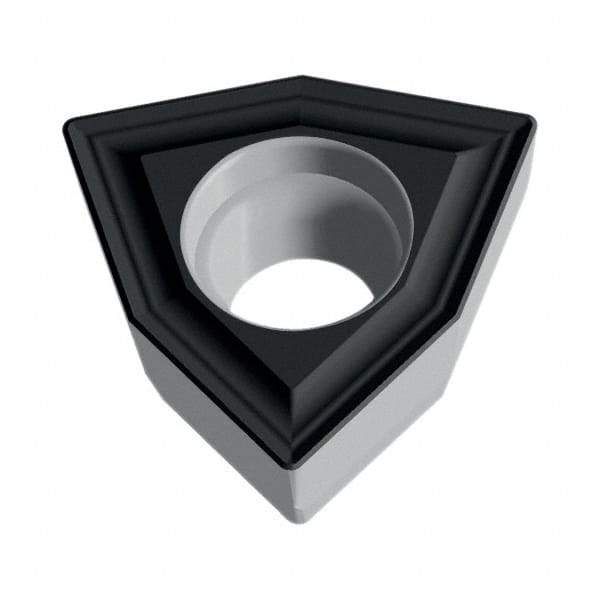

Walter - WOMX030204 D57 Grade WKP35S Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Trigon, 5mm Inscribed Circle
Item #: 68712181
Brand: Walter
Model #: 6381799
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WOMX |
| Insert Size | 030204 |
| Material | Carbide |
| Material Grade | P35/K35 |
| Manufacturer's Grade | WKP35S |
| Inscribed Circle (mm) | 5.00 |
| Inscribed Circle (Decimal Inch) | 0.1969 |
| Thickness (mm) | 2.38 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Trigon |
| Length (mm) | 3.31 |
| Length (Decimal Inch) | 0.1303 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Chipbreaker | D57 |
