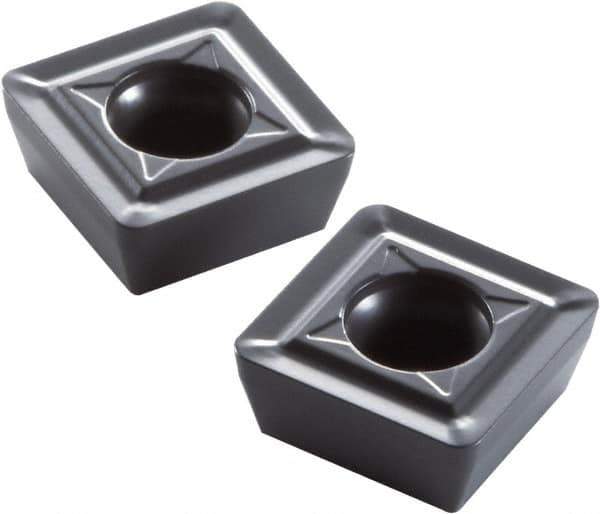

OSG - SCMT104208 DM Grade XC9025 Carbide Milling Insert - TiCN/Al2O3 Finish, 4.2mm Thick, 10mm Inscribed Circle, 0.8mm Corner Radius
Item #: 68559905
Brand: OSG
Model #: 7817006
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 104208 |
| Material | Carbide |
| Manufacturer's Grade | XC9025 |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (mm) | 10.00 |
| Thickness (mm) | 4.20 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 7.000 |
| Coating Process | CVD |
| Shape | Square |
| Chipbreaker | DM |
