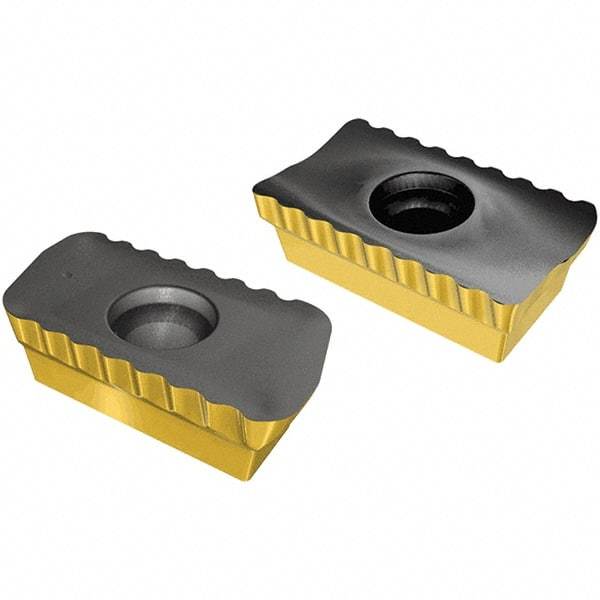

Iscar - P290 ACCT204 TL Grade IC830 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 4.8mm Thick, 0.9mm Corner Radius
Item #: 68536432
Brand: Iscar
Model #: 5668292
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P290 ACCT |
| Insert Size | 204 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 12.90 |
| Length (Decimal Inch) | 0.5120 |
| Thickness (mm) | 4.80 |
| Thickness (Decimal Inch) | 0.1890 |
| Corner Radius (Decimal Inch) | 0.0350 |
| Corner Radius (mm) | 0.90 |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | TL |
| Maximum Depth of Cut (mm) | 12.00 |
| Manufacturers Catalog Number | P290 ACCT 1204PDR-TL |
| ISO Number | P290 ACCT 1204PDR-TL |
| ANSI Number | P290 ACCT 1204PDR-TL |
