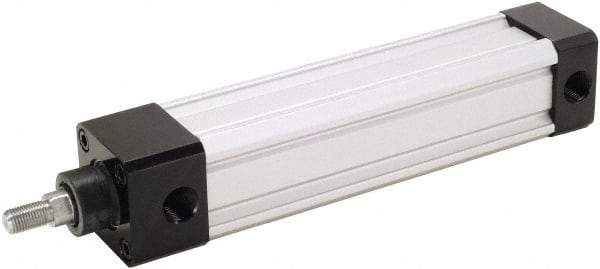

ARO/Ingersoll-Rand - 1-1/2" Stroke x 3-1/4" Bore Double Acting Air Cylinder - 1/2 Port, 3/4-16 Rod Thread, 250 Max psi, 185°F
Item #: 68483809
Brand: ARO/Ingersoll-Rand
Model #: ANAWM-AGXAB-014
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 3-1/4 |
| Rod Diameter (Inch) | 1 |
| Rod Diameter (Decimal Inch) | 1.000 |
| Stroke Length (Inch) | 1-1/2 |
| Mounting Style | Side Tapped |
| Port Size | 1/2 |
| Port Type | NPT |
| Width (Decimal Inch) | 3.7500 |
| Length (Decimal Inch) | 8.260 |
| Mount Thread | 1/2-13 |
| Material | Aluminum |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 250 |
| Rod Thread Size | 3/4-16 |
| Cushions | Non-Cushioned |
